Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan
Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan
Atom Lighting

Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan

$164.00
$229.00
-28.38%

Optional LED Light 15W dimmable tri-colour LED Switchable colour temperature between 3000K, 4000K and 5000K Lumen output of up to 1145lm

0 in stock
Quantity:
- +
Add to cart -  $164.00

  • SKU:

    VANUATU/39/WH

  • Categories:

    Fans & Heater

Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan
Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan
Fans & Heater
$164.00
Quantity:
- +
Add To Cart
  • Description
  • Specifications
  • Controllers
  • Downloads
Atom Vanuatu 39" 4 Blade 40W DC Ceiling Fan

  • Quiet and efficient 40W DC motor
  • ABS construction ideal for coastal conditions
  • Includes 3 speed DC wall control
  • Ideal for outdoor undercover patio areas
  • Reversible for summer and winter use
  • Quick connect wiring for ease of installation
  • Easy blade assembly

Product Specifications

Mechanical

IP RatingIP20
Fitting ColourSatin White
Body MaterialABS

Electrical

Working Temp Range-10 to 40 °C
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Air Movement

Motor Wattage40 W
Motor TypeDC
No. Speeds3
ControlWall control
Ceiling Rake15 °

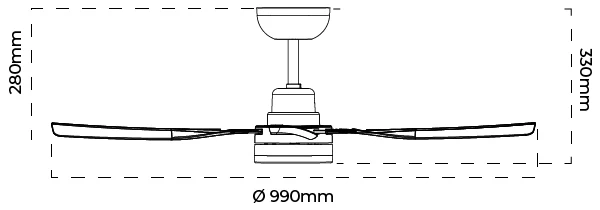

Ceiling Drop330 mm
Blade MaterialABS
Fan Size990mm (39inch)
Fan Speed 140 W, 295 rpm, 10600 m³/h
Fan Speed 220 W, 240 rpm, 8700 m³/h
Fan Speed 35 W, 140 rpm, 4400 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14

No Data Available
